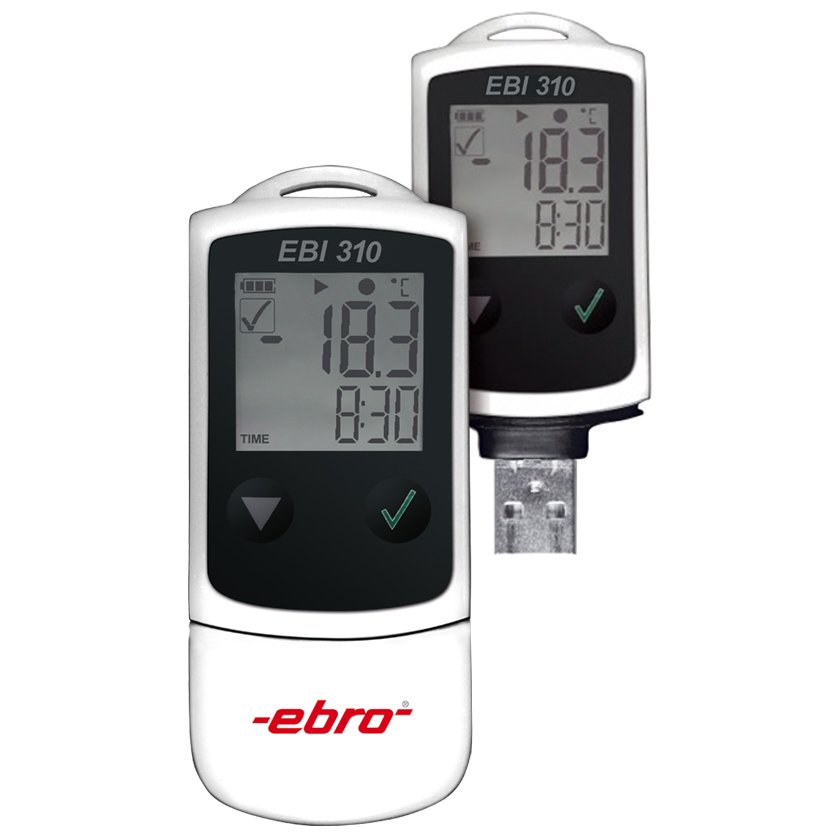

    LEBI-310 USB Data Logger
    LEBI-310 USB Data Logger

    LEBI-310 USB Data Logger

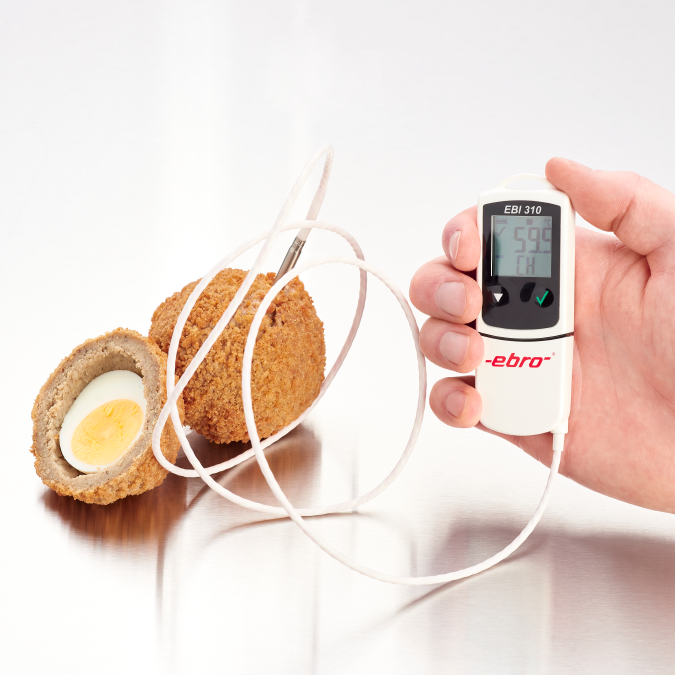

    All the benefits and features of the versatile LEBI-300 USB datalogger, with a greater temperature range and increased accuracy. Probe options available to enable up to to two external channels in addition to the internal sensor (total 3 channels).
    Code: LEBI-310
    €349.00

    10 Available


    Code: LEBI-310
    10
    €349.00
    QtyAdd to my basket

    Add to Favourites
    Product Description

    Simple 3 stage operation: START, CONNECT and INSPECT.

    1. START

    Four methods of programming the versatile LEBI-300 USB logger:

    • Pre-programmed  All models supplied with chill settings for max/min limits and logging interval. Simply press start and place in shipment.
    • Quick Launch  Save time and simplify programming without compromising on your bespoke logging requirements. Create your own preset program as a Quick Launch .exe file online or use winlog.basic software, which can be saved and shared for use on any PC, removing the need for further software.
    • Software  User friendly winlog.basic software available free of charge.
    • Online  Programmable from any location worldwide via internet access at https://lebi300.klipspringer.com.

    2. CONNECT

    Stay up to speed during transit with multiuse USB loggers - view:

    • Current temperature.
    • Maximum temperature.
    • Minimum temperature.
    • Alarm status.
    • On arrival at destination, connect to any USB port
    • No interface required.
    • No software necessary.

    3. INSPECT

    • On connecting to a USB port, PDF report is automatically generated.
    • Instant identification where temperature preset limits have been violated.
    • Full device information including serial number and your preset ID.
    • Logging configuration.
    • Alarm conditions.
    • Transit statistics max, min and average temperatures.
    • Annotated graph.
    • Provision for signature for sign off.
    • Complies with: FDA 21 CFR Part 11.
    • GMP pharmaceutical law compliant.
    • Detailed analysis of data available using Winlog.basic software.
    Technical Specifications
    MaterialPolycarbonateAccuracy± 0.2°C (-30°C ...+30°C)± 0.5°C (for the remainder)
    Memory120,000Resolution0.1°C
    IP ratingIP65Measuring range-30°C...+75°C
    SensorPt1000Battery3v CR2032
    Battery life2 yearsWarranty2 years
    CertificationFree issue certificate suppliedDimensions (mm)80 x 34 x 14mm
    Operating Ambient (Temperature)-30°C...+75°CAlarm2 limits per channel (max of 1 int and 2 ext channels)
    Sampling rate1sec...24hrSoftwareWinlog.basic
    Start delayYesNumber of channels1 internal
    Applications
    ApplicationProduction
    Laboratory
    High temperature validation
    Low temperature validation
