PCOND210-K Conductivity Meter Kit with Electrode

Measures conductivity, TDS, resistivity & salinity. Includes plastic-body electrode, integrated temperature sensor, titanium - platinum black conductivity cell, k=1.0; carrying case, with conductivity solution: 84uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm (60ml). Calibration Certificate included.

IP67 Waterproof, shock & scratch-resistant housing in combination with digital sensors that brings flexibility and dynamic measurement experience.

Code: PCOND210-K
£587.24

1 Available


Code: PCOND210-K
Availability: 1
£587.24

Add to Favourites
Features:

  • Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
  • Adjustable reference temperature and temperature coefficient
  • Adjustable cell constant and selectable measurement unit
  • Automatic / manual temperature compensation and temperature calibration function
  • Conductivity and total dissolved solids (TDS) conversion
  • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two (2) salinity calibration curves: NaCl, Seawater
  • °C & °F temperature readings
  • Auto log data; built-in memory can store up to 500 data
  • Auto stable, auto hold, and real-time measurement modes
  • Auto shut-off (programmable: up to 30 minutes)
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Powered by 2 x AA batteries
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Packaged with electrode and calibration solutions in carrying case
  • 3 years meter warranty

Measurement Specifications:

Conductivity
  • Range - 0 μS/cm to 200.0 mS/cm (k=1.0)
  • Resolution - 0.05% full scale
  • Accuracy ±0.6% full scale, ±1.5% full scale > 18.0 mS/cm
  • Reference Temperature 15 to 30 °C
  • Temperature Coefficient 0.00 to 10.00%
  • Cell Constants - 0.1, 1.0, 10.0
  • Calibration Points - Up to 4 (Auto) / Up to 5 (Manual)
  • Units - S/cm, S/m (Auto Ranging)

Total Dissolved Solids (TDS)
  • Range - 0 ppm to 100 ppt (TDS factor=0.5)
  • Resolution - 0.01 ppm (mg/L) / 0.1 ppt (g/L)
  • Accuracy - ±0.1% full scale
  • TDS Curves - Linear (0.40 to 1.00), EN27888, 442, NaCl

Resistivity
  • Range - 0.000 Ω•cm to 20.0 MΩ•cm
  • Resolution - 0.05% full scale
  • Accuracy - ±0.6% full scale, ±1.5% full scale > 1.80 MΩ•cm

Salinity
  • Range - 0.0 to 100.0 ppt / 0.00 to 10.00 %
  • Resolution - 0.1 ppt / 0.01%
  • Accuracy - ±0.2% full scale
  • Salinity Curves - NaCl, Seawater
  • Calibration Option - Yes

Temperature
  • Range - -30.0 to 130.0 °C / -22.0 to 266.0 °F
  • Resolution - 0.1 °C / °F
  • Accuracy - ± 0.5 °C / ± 0.9 °F
  • Calibration Option - Yes

Package Details:

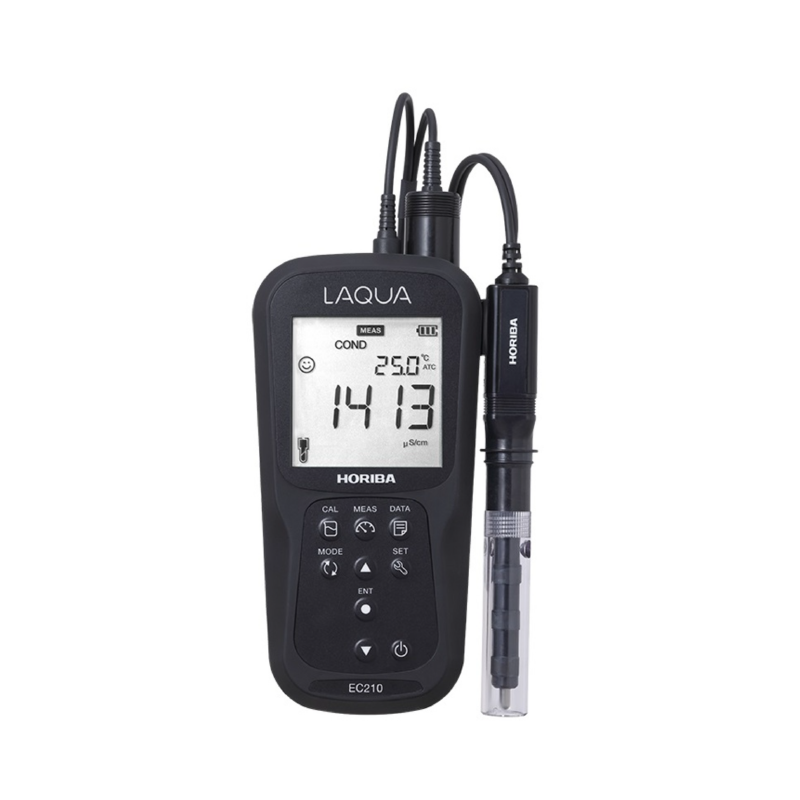

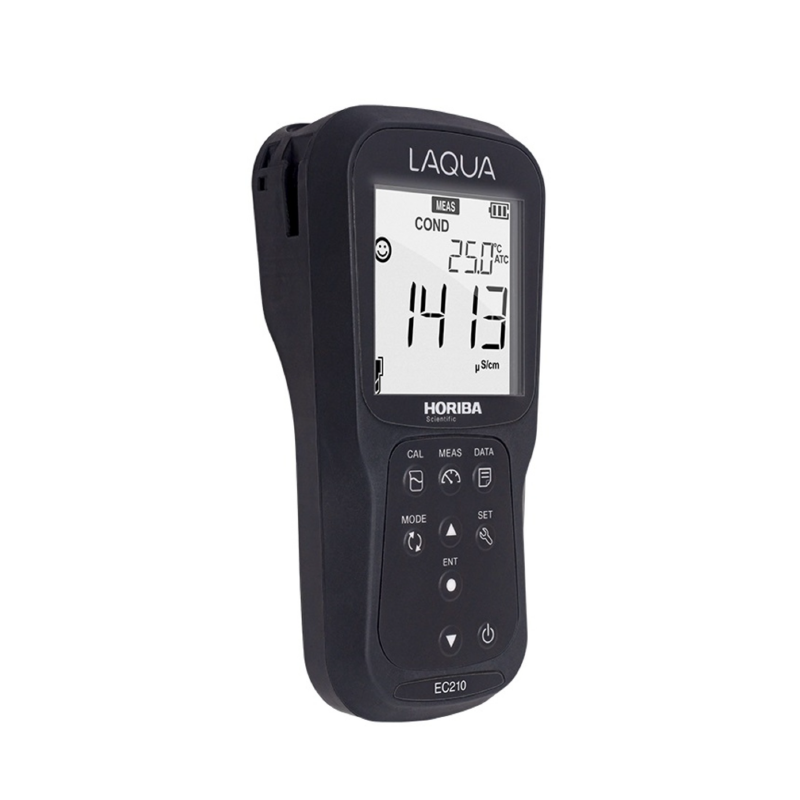

  • PCOND210 Cond/TDS/Res/Sal/Temp meter
  • 2 x AA batteries
  • Manual and quick guide

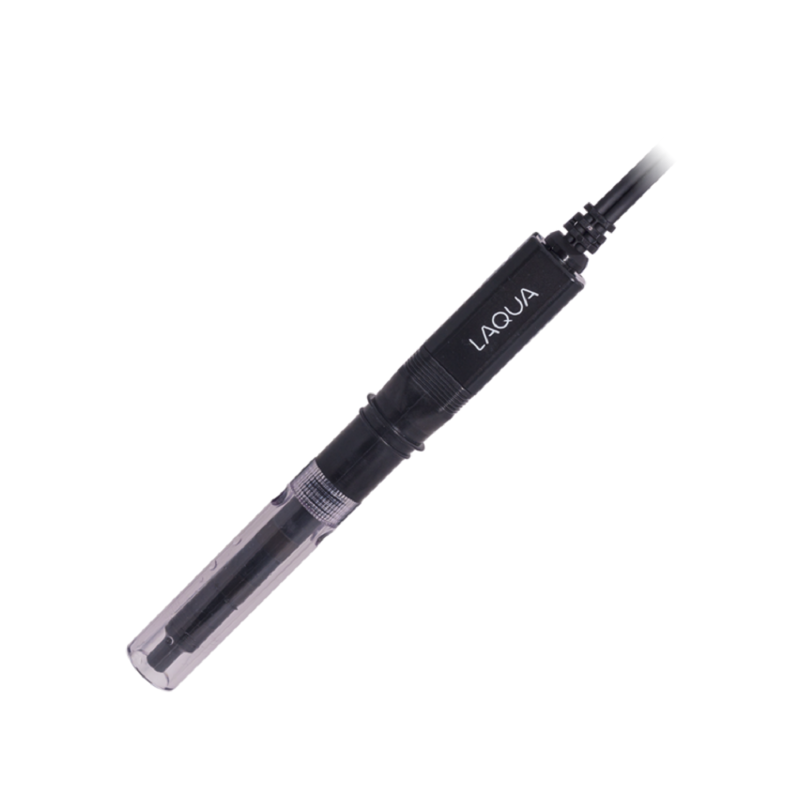

  • PCONDSEN210 plastic-body, Ti/Pt black conductivity probe (k=1.0) with integrated temperature sensor
  • 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each)
  • Carrying case
Memory500Auto Data Log YES
Auto Hold / Auto Stable/ Real Time YESAuto Shut-Off (1 to 30 mins.) YES
Electrode Status YESDiagnostic Messages YES
Software Upgrade1 YESMeter Inputs BNC, phono
DisplayCustom LCD with backlight HousingIP67, shock & scratch resistant, non-slip
Power Requirement 2 x AA batteries Battery life> 500 hours
Meter Dimensions 160 (L) x 80 (W) x 40.60 (H) mm Meter Weight Approx. 260 g (with batteries) / 216 g (without batteries)
